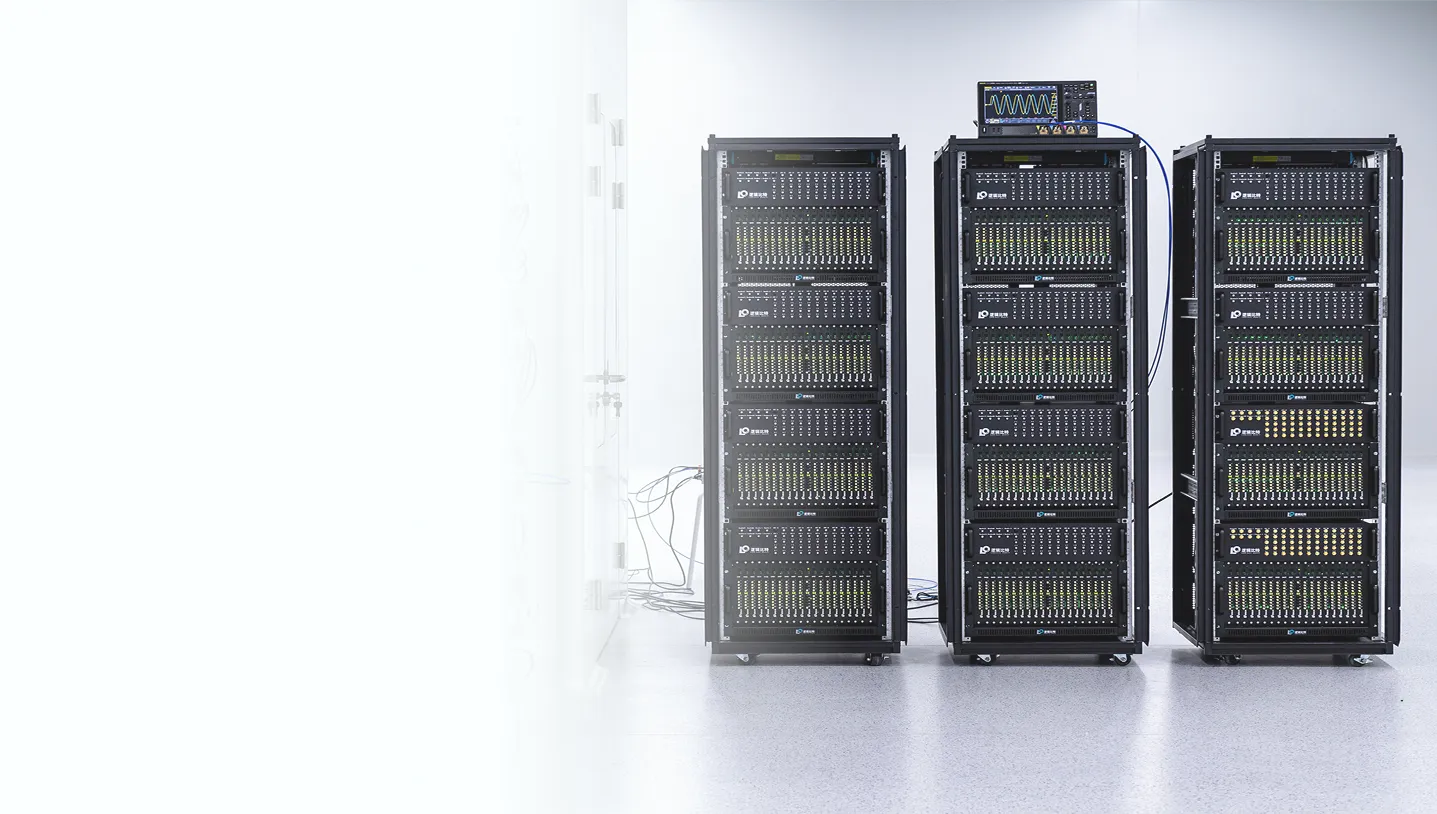

High-Precision Quantum Measurement
and Control System

Modular design scalable to thousands of bits of synchronous measurement and control suitable for standardized quantum chip manipulation.

Core Technological Advantage

Download Product Manual

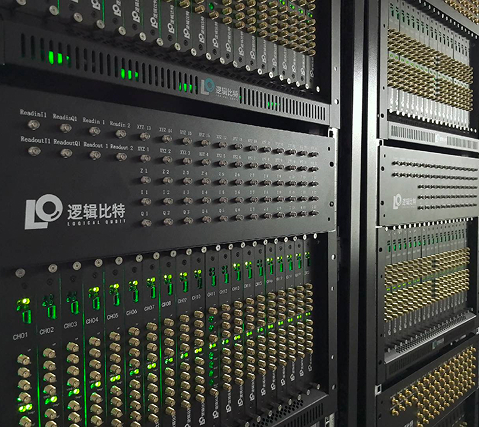

Measurement and Control Software

>99.5%

100-qubit simultaneous fidelity of CZ gates (up to 99.9% for a single set)

with feedback support

Core precision components

Download product manual

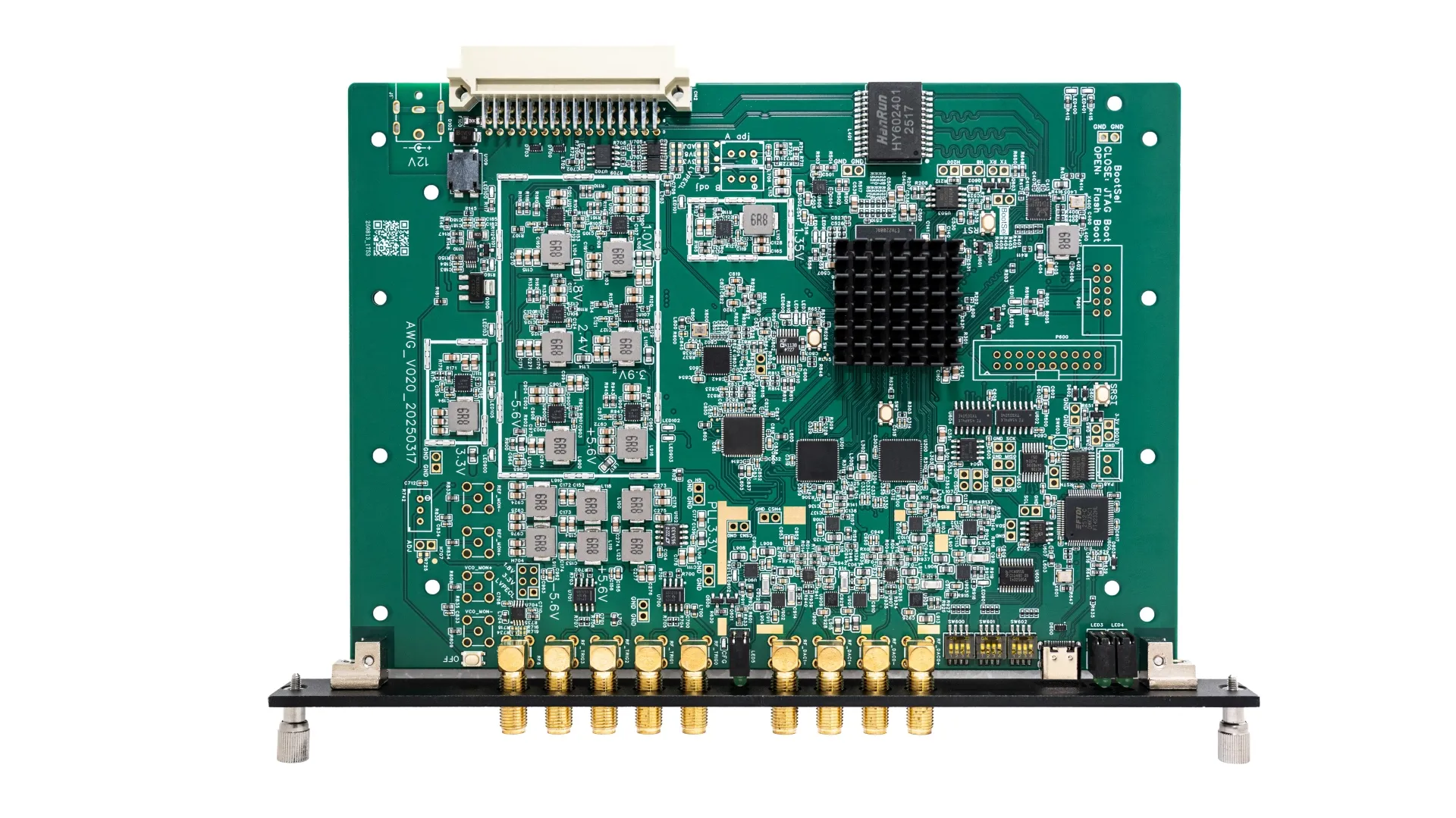

AWG-020 Board Card

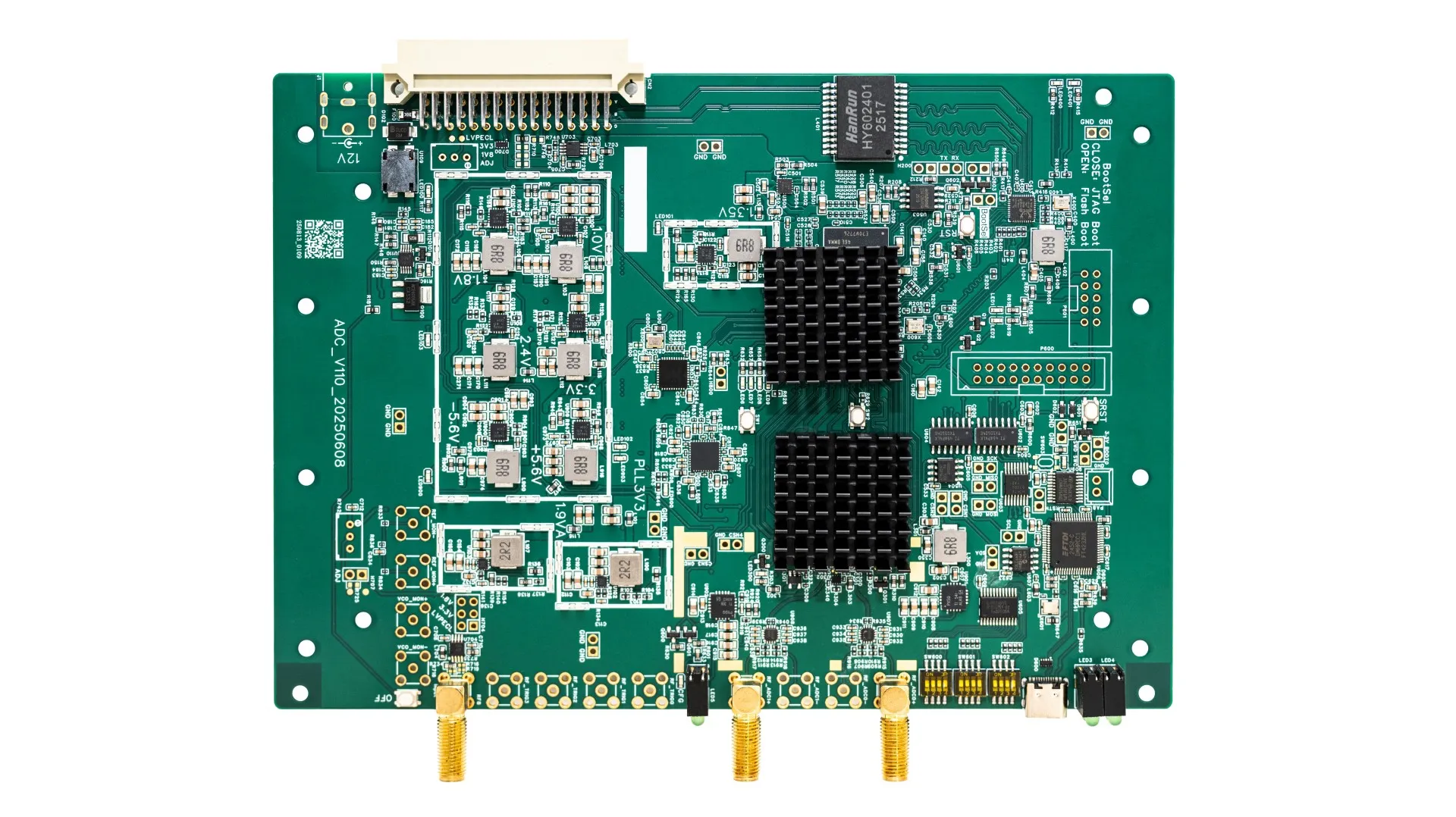

ADC-110 Board Card

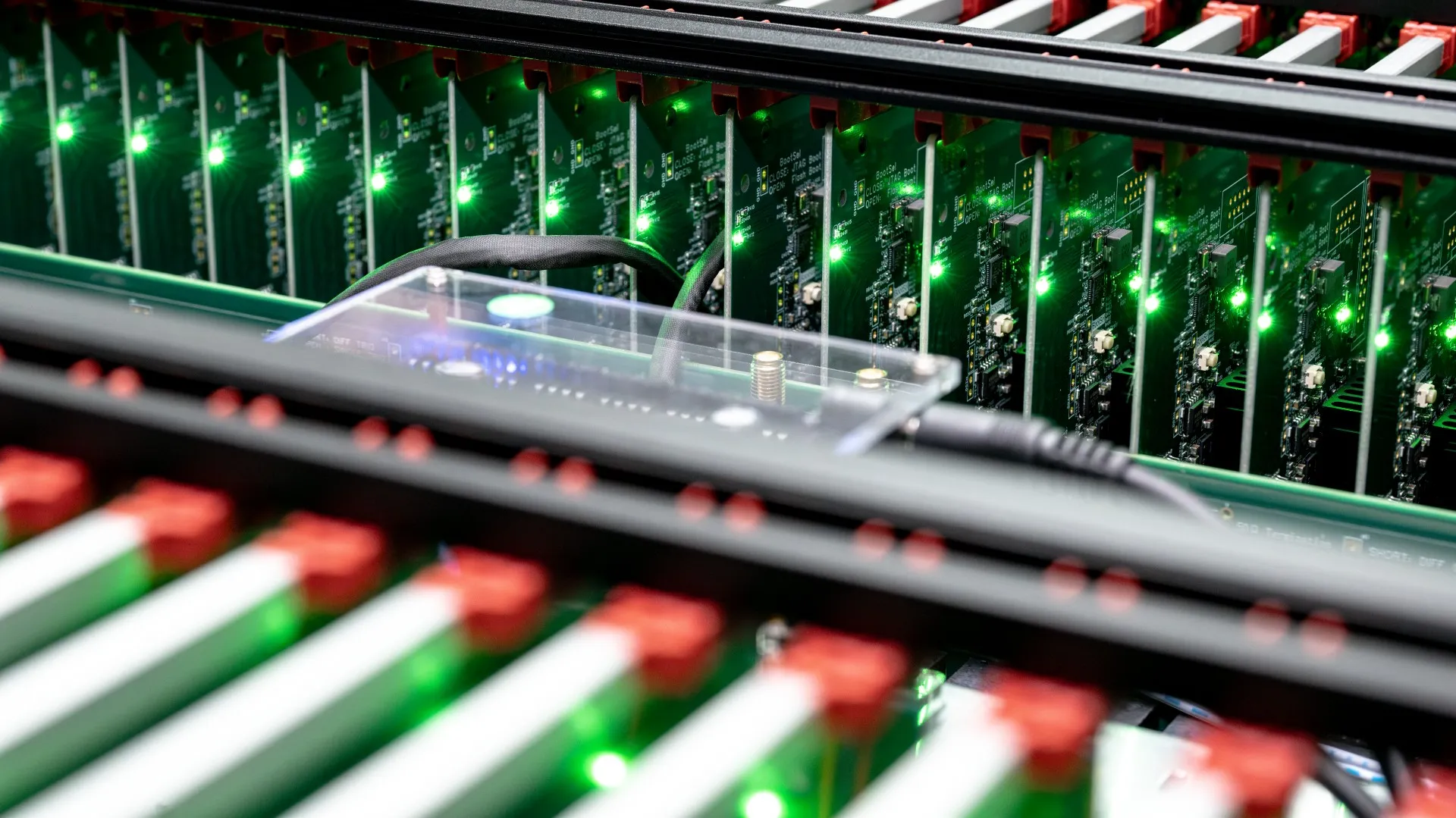

Chassis

Function

Output arbitrary waveforms within a specific frequency range

Number of Channels

Sampling Rate

1.0GS/s

Output Frequency

DC-300MHz

Output Amplitude

-0.6 V to +0.6 V

Vertical Resolution

16-bit

Maximum Output Length

100μs

Function

Receive signals within a specific frequency range and perform demodulation analysis

Number of Channels

Sampling Rate

1.5 GS/s or 1.0 GS/s

Input Frequency

DC-300 MHz

Input Amplitude

-0.2 V to +0.2 V

Number of Demodulation Channels *

8 or 12

Demodulation Window Length

4096 ns

Number of Demodulation Windows

Continuous Analysis Iterations

60000 times

Other Functions

Feedback control of AWG board card

Function

Provides clock and trigger distribution functions, supports installation of multiple board cards

Number of Slots

39 slots for AWG/ADC board cards

Input Clock Frequency

25 MHz

Input Clock Power

-10 dBm to 14 dBm

Trigger Signal Amplitude

≤5 V

Network Interface

LC (10Gbps)

*When Sampling Rate is 1.5 GS/s

Number of demodulation channels is 8

*When Sampling Rate is 1.0 GS/s

Number of demodulation channels is 12
